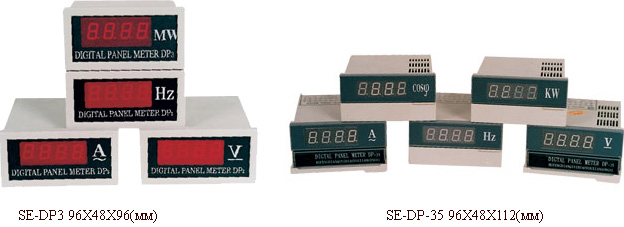

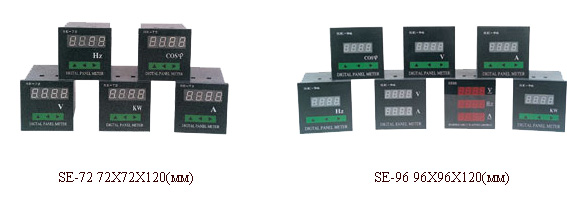

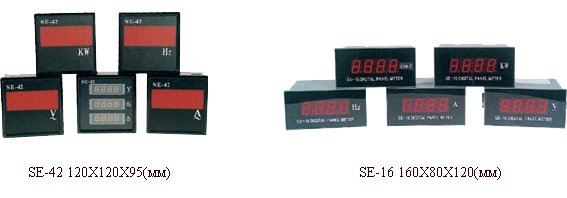

DIGITAL PANEL METER








Digital panel meter which is various and artistic in appearance design is used for dual slope, high precise A/D changeover circuit and high light LED cassette setting specifications. It is very convenient for user to fix the equipment.
SPECIFICATION
Description Direct input range Input current range Operation voltage Display range Class
AC & DC digital voltage meter AC DC0-100V - AC 220V 50/60HZ 0-1999 0.5
AC & DC digital Ampere meter AC 10-20A DC0-10A - AC 220V 50/60HZ 0-1999 0.5
Frequency digital meter AC 10-2KHZ(20-300V) - AC 220V 50/60HZ 0-1999 0.5
AC tri-phase watt meter AC 0-100V AC 5A AC 380V 50/60HZ
AC110V 50/60HZ
0-1999 -
AC single-phase watt meter AC 0-220V AC 10-5A AC 220V 50/60HZ
AC 110V 50/60HZ
0-1999 -
AC single-phase factor meter AC 100-300V AC-5A AC220V 50/60HZ 0.5-0-0.5 -
